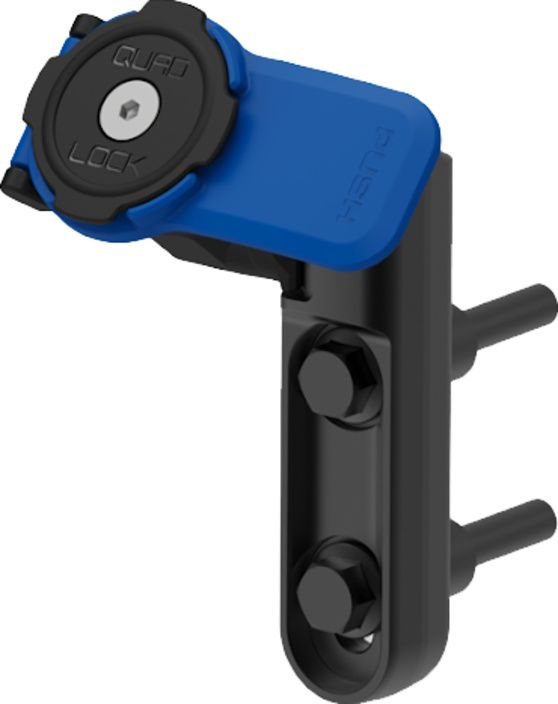

Quad Lock Brake/Clutch Mount

The Quad Lock® Brake/Clutch Mount is the perfect solution for motorcycles which require mounting on the brake/clutch perch.

SECURE MOUNTING

The Quad Lock® Brake/Clutch Mount secures to your motorcycle's brake/clutch clamp using high tensile fasteners with serrated flange bolts for complete security.

The patented dual-stage lock mount head means you can ride with confidence, knowing that your smartphone will stay secure on your bike without the need for cumbersome lanyards, straps, bands or magnets, no matter the terrain.

OPTIMAL VIEWING ANGLE

The mount can be attached to your motorcycle's clutch or brake perch two-hole pattern on either the left or right hand side. An inboard mount head ensures you have full access to all your controls.

The mount head can be rotated 180 degrees, as well as finer tilt angle adjustments, giving you the perfect viewing position for your smartphone on any motorcycle.

SLEEK DESIGN

The Quad Lock® Brake/Clutch Mount uses tough materials, with a minimal design, making it look right at home on every motorcycle.

PLEASE NOTE: To use this mount, your smartphone must already be equipped with a universal or model-specific Quad Lock Original Case or Quad Lock MAG Case, Adapter Universal Quad Lock or Quad Lock MAG. Explore the different options in the "Related Products" section.

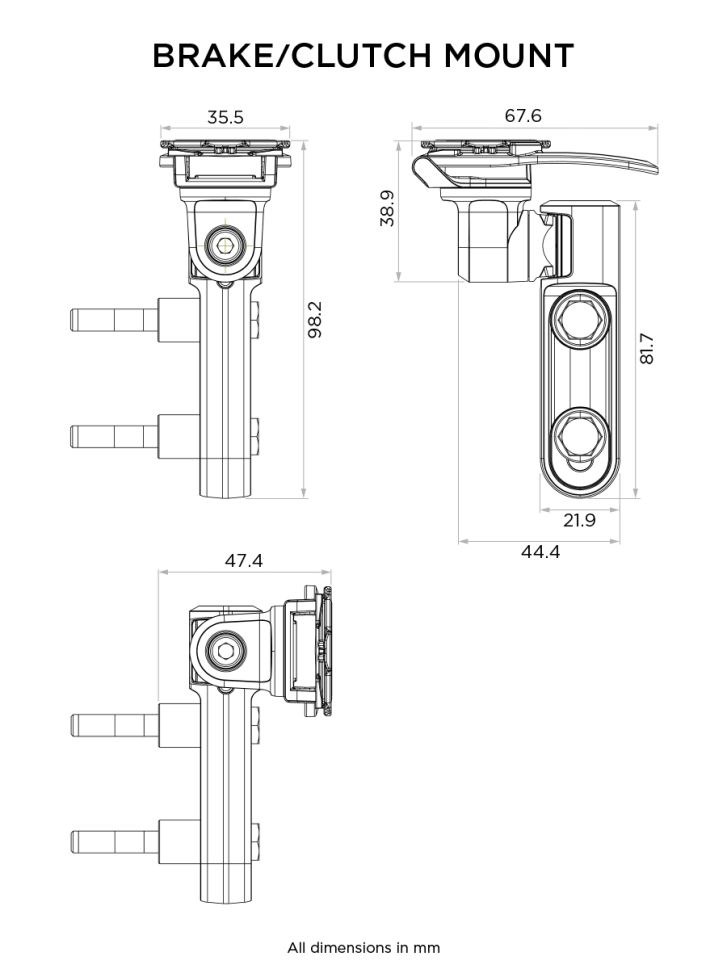

TECH SPECS

• Made from tough glass filled nylon
• Anodised die cast aluminium base
• Stainless steel pivot pins and threaded inserts
• High tensile steel fasteners with micro-encapsulated thread locker
• Mount base hole pitch 32mm - 38mm (1 1/4" - 1 1/2")
• Index head is offset inboard away from handlebar controls
• Non-handed and can be mounted on the left or right hand side of the motorcycle

WHAT’S INCLUDED:

• 1 x Quad Lock® Brake/Clutch Mount
• 2 x M6 x 45 serrated flange bolts with thread locker
• 2 x UNC 1/4"-20 x 1.75 serrated flange bolts with thread locker
• 2 x spacers
• 1 x combination 3mm/4mm hex (Allen) key
